Product series

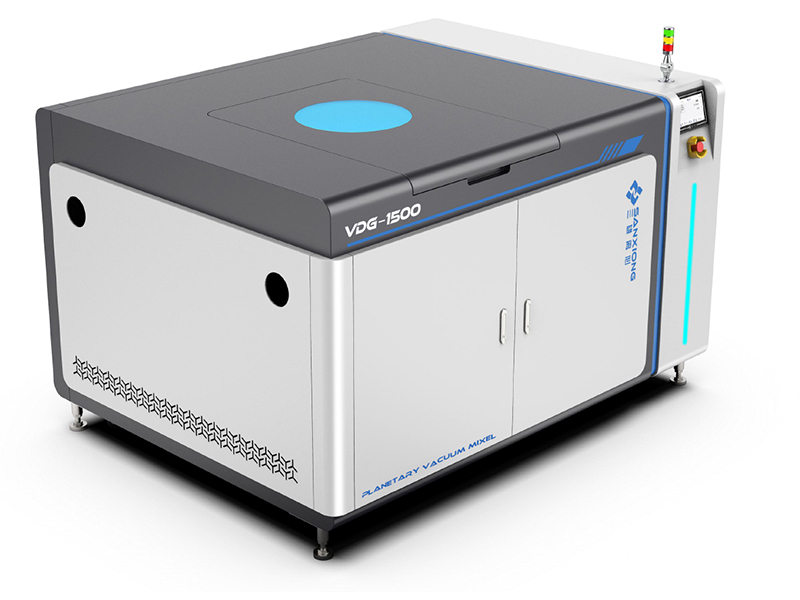

Vacuum planetary defoaming mixer VDG-1500 series
- Admin
- 2024-11-09
- 33 times
Main use
Mixing and defoaming of new energy battery materials
Mixing and defoaming of nanomaterials
Mixing and defoaming of IC semiconductor
Solar photovoltaic mixing, defoaming
Mixing and defoaming of biomedicine
Mixing and defoaming of photoelectric components
LED and touch screen mixing, defoaming
Mixing and defoaming of daily chemical industry
...
......
Product details
Vacuum planetary defoaming mixer VDG-1500 series, under the action of nearly 400G centrifugal gravity, equipped with vacuum decompression function to remove sub-micron bubbles, can simultaneously stir evenly in the container, defoaming treatment;
The stirring defoaming performance of the VDG-1500 is the same as that of laboratory grade models such as VDB-300 and VSB-300, and can be quickly mass-produced in a short time while ensuring the quality of laboratory grade treatment. Making it easy to stir and defoam high-viscosity liquids; Make it easy to mix and defoam evenly between liquids, between liquids and powders, and between materials with different proportions and specific gravity of fillers!
In addition, the VDG-1500 is also equipped with a standard rotation ratio adjustable mechanism, which can set different processing parameters according to the nature of the material. It can not only promote the mass production of new materials, but also improve the efficiency of the mass production process of existing materials.
Model number | Mixed processing capacity | Centrifugal force Max | Revolution Max.RPM | Specific velocity of revolution/rotation | Dynamic balance | Relative vacuum | Application situation | |
By quality | By volume | |||||||
VDG-1500 | ≤3Kg*2 | 1500 * 2 or less | 650G | 1300 | No pole adjustable | Two cups equal weight on both sides | 0/-100kpa | Conventional neutral material |
VDG-1500AC | ≤3Kg*2 | 1500 * 2 or less | 650G | 1300 | No pole adjustable | Two cups equal weight on both sides | 0/-100kpa | Highly corrosive substance |
*If the parameter display is incomplete, swipe left and right!
