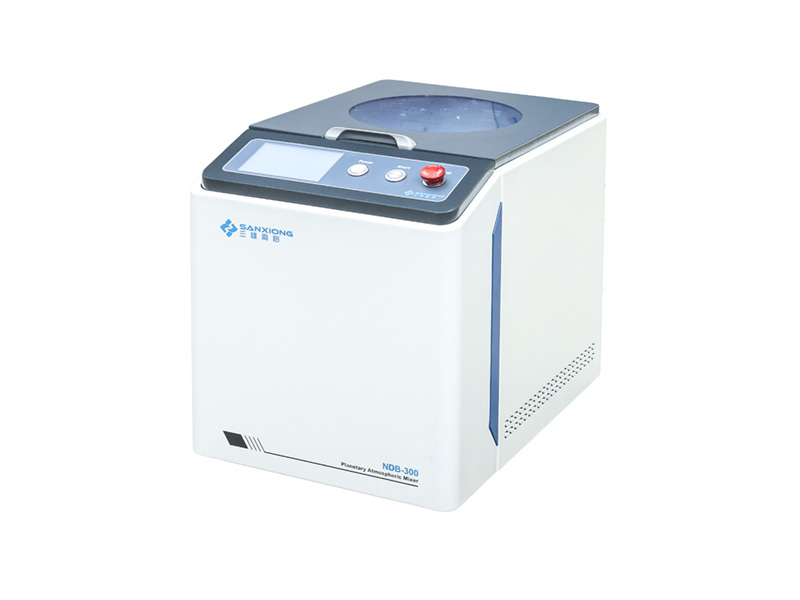

Atmospheric pressure planetary defoaming Mixer 300 series

  • Admin
  • 2024-05-20
  • 145 times

Main use

  • Conductive/resistive material mixture of gold/silver/carbon paste etc

  • Glass/ceramic paste and other sealing/insulating material mix

  • Single and double liquid epoxy resin and other sealing materials/adhesives mixed

  • Silicone resin and other forming materials mixed

  • Precision coating, chemical fiber spinning, powder metallurgy mixing

  • Ink/paint/pigment, etc., mixing of various color materials;

  • Dental materials/pharmaceutical materials/biomedical/cosmetic substrates and other manufacturing purposes

  • Vacuum welding material/co-solvent/plasma material manufacturing purposes

  • Precision parts for grinding purposes

......

Product details

Atmospheric pressure 300 series models, under the action of nearly 400G centrifugal gravity, non-contact container stirring, defoaming;

The gravity separation motion of the mixed material along the vector direction and the upward pushing effect of the material's own weight will separate the bubbles with smaller density and play the role of defoaming; At the same time, the material rotates in the container material cup, so that the different groups of materials in the cup are fully cross-mixed, and finally realize defoaming and stirring;

modelHybrid processing capabilitiesCentrifugal forceMaxRevolution Max.RPMRevolution/rotation speed ratioDynamic balanceVacuum degreeApplications
By qualityBy volume
NSB-300≤500g≤300ml350G18000-100%Dial adjustmentNormal pressureNormal neutral substances
NSB-300F≤300g≤300ml400G2200ConstantDial adjustmentNormal pressureNormal neutral substances
NSB-300AC≤500g≤300ml350G18000-100%Dial adjustmentNormal pressureStrong corrosive substances
NSB-300ACF≤300g≤300ml400G2200ConstantDial adjustmentNormal pressureStrong corrosive substances


*If the parameter display is incomplete, swipe left and right！
