Vacuum planetary defoaming Mixer 600 series

  • Admin
  • 2024-05-20
  • 285 times

Main use

  • For the research and invention of new materials in universities and scientific research institutes;

  • New energy battery

  • nanomaterials

  • IC semiconductor

  • Solar photovoltaic

  • biomedicine

  • Photoelectric component

  • LED and touch screen

  • Daily chemical

......

Product details

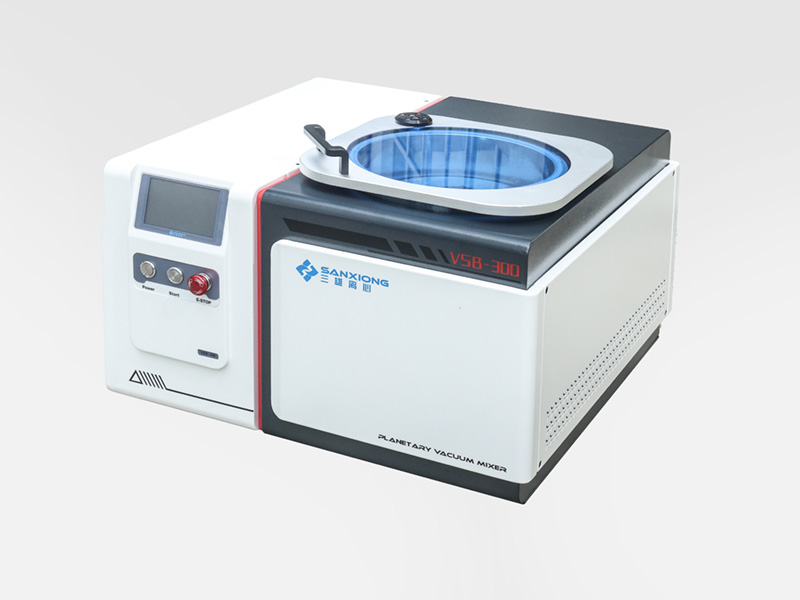

Vacuum planetary defoaming mixer 600 series, under the action of nearly 400G centrifugal gravity and the relative vacuum degree of 0/-100Kpa working environment, non-contact container stirring, defoaming;

The gravity separation motion of the mixed material along the vector direction and the upward pushing effect of the material's own weight will separate the bubbles with smaller density and play the role of defoaming; At the same time, the material rotates in the container cup, so that the different groups of materials in the cup are fully cross-mixed under vacuum, and finally achieve nanoscale defoaming and stirring mixing; Making it easy to stir and defoam previously unmanageable or time-consuming high-viscosity liquids; Easy mixing/dispersion between liquids, between liquids and powders, filling ratios and materials with large specific gravity differences!

modelHybrid processing capabilitiesCentrifugal forceMaxRevolution Max.RPMRevolution/rotation speed ratioDynamic balanceRelative vacuumApplications
By qualityBy volume
VDB-600≤500g*2≤300ml*2400G2200ConstantDouble cups on both sides with equal weight0/-100kpaNormal neutral substances
VDB-600AC≤500g*2≤300ml*2400G2200ConstantDouble cups on both sides with equal weight0/-100kpaStrong corrosive substances


*If the parameter display is incomplete, swipe left and right!
